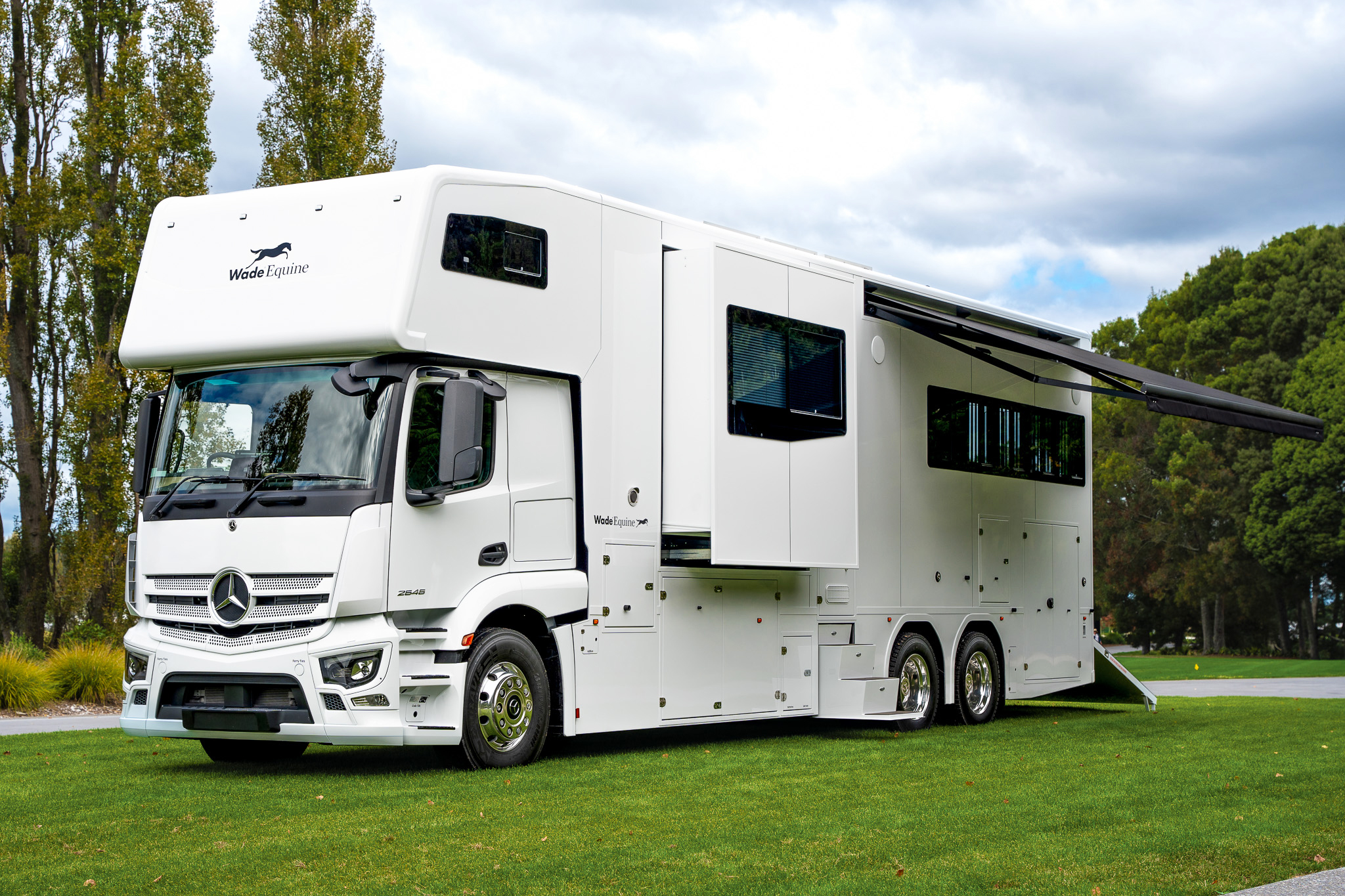

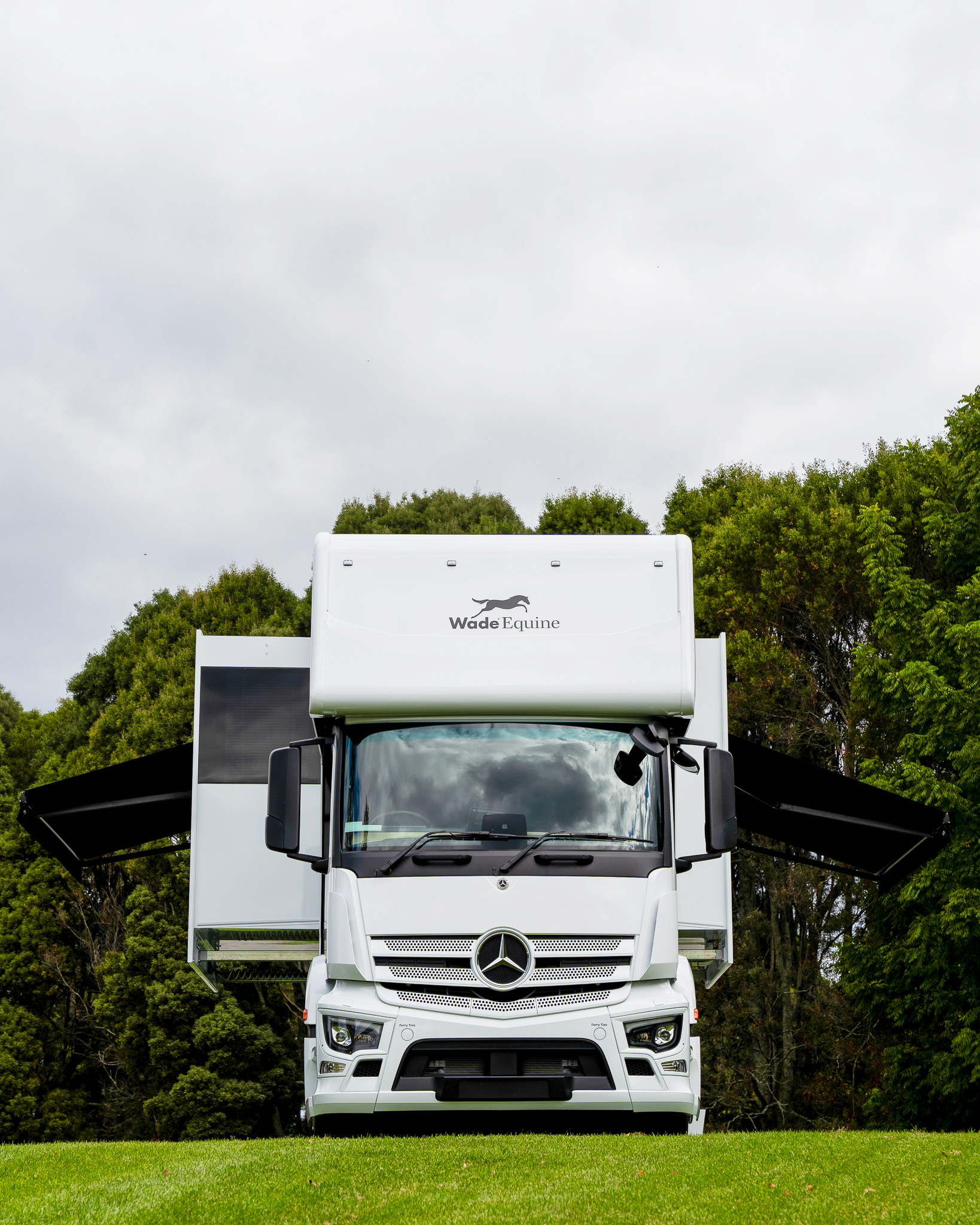

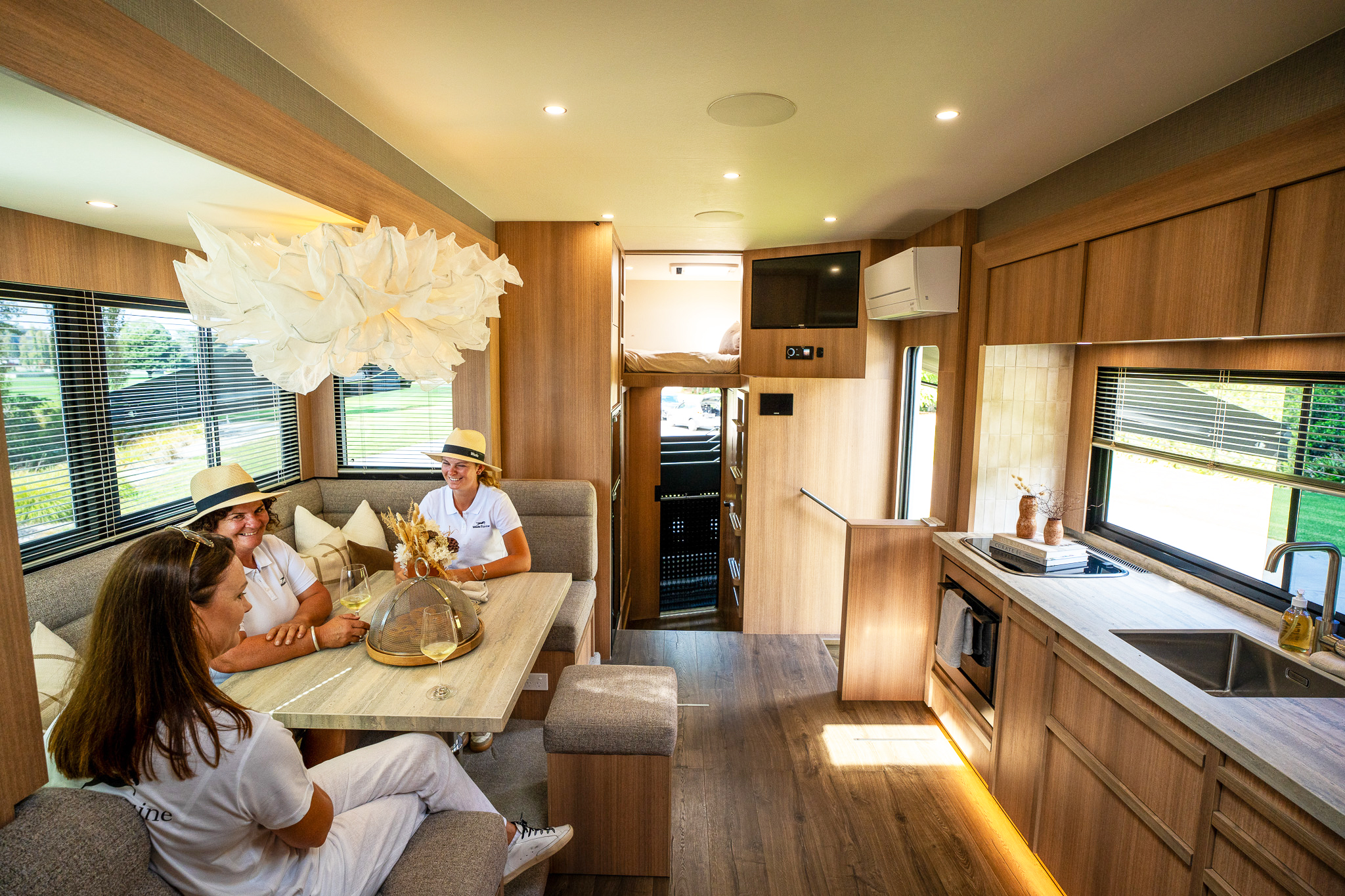

Built with the utmost attention to detail on the powerful Mercedes Benz Actros drivetrain, this fully Australian Compliant Wade Equine Diamond Series offers a nothing-spared specification featuring twin slide-out living, all-new Mobile Tack Locker system and a fully air-conditioned interior that exudes sumptuous timeless style.

Talk to Alyssa Wade now +64 21 822 810,

Body Construction

Constructed of duragalv mild steel box section with an outer skin of 4mm ACM (aluminium composite material) upper panels and 3mm aluminium lower skirt panels.
All lockers and doors are constructed of 3mm aluminium and are fully dust and waterproof.

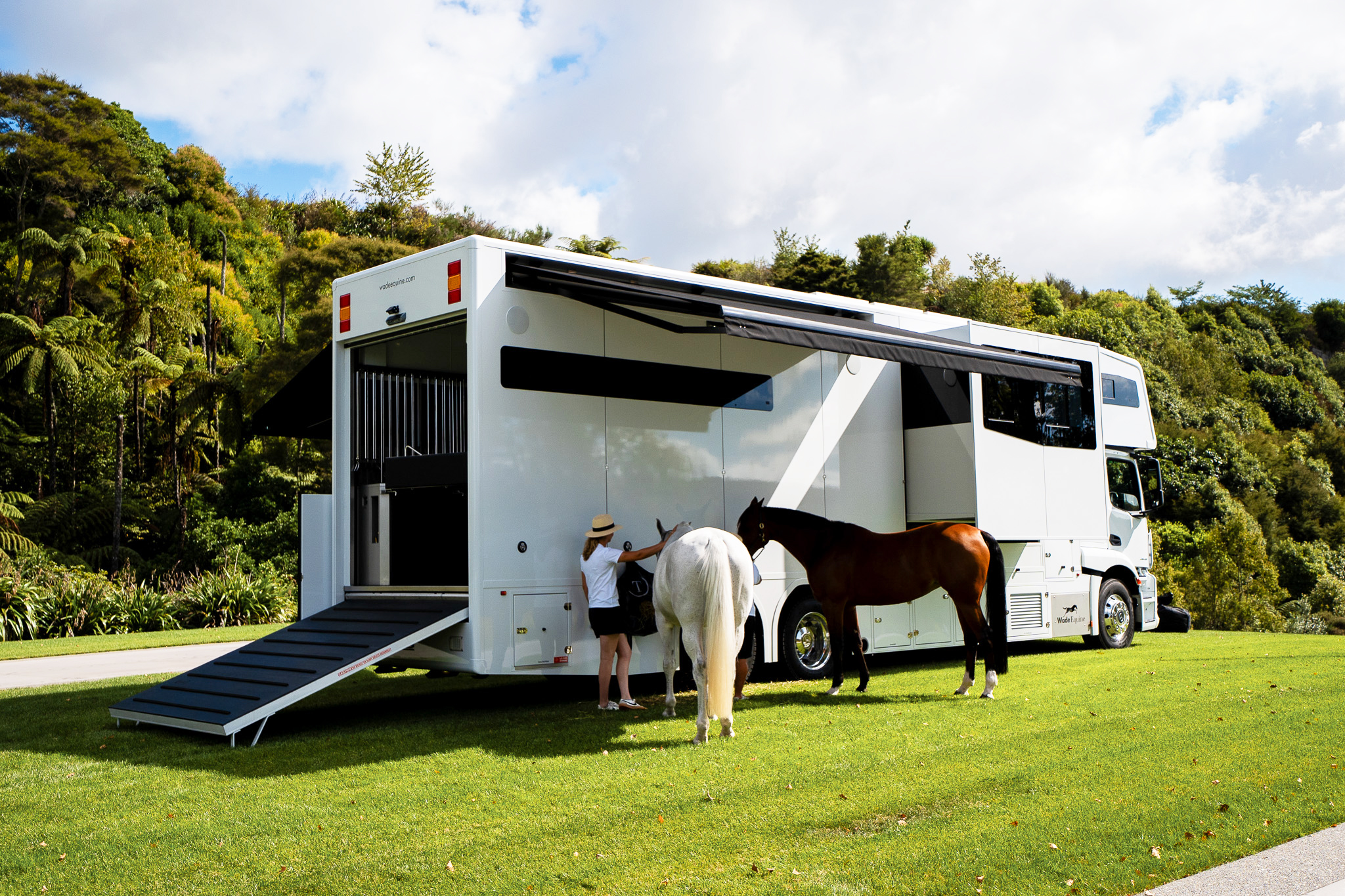

The tailgate frame and outer panels are full aluminium construction with cleated rubber on the walkway – operated hydraulically from the LH side of the vehicle and is automatically locked with solenoid valves.
In the unlikely case of a power failure these solenoid valves can be manually opened to bring the tailgate down and can be closed using the installed manual hand pump system.
Vehicle engine access via the push of a button which hydraulically opens the cab/luton.

Czone Digital Monitoring & Control

From a single touch pad the Czone system monitors all incoming power from the solar panels, generator, mains connection and the truck when it is running.
3 program modes for when the truck is stored under cover, parked unattended or fully operational.
Water tanks are monitored, and the water pump is programmed to turn off when the tanks are empty.
Macerator toilet is switched off when the black tank is full.
Generator is configured to turn on automatically when battery charging is required, it also has quiet night times programmed.

Electrical Charge & Supply

Quality Mastervolt products charge and supply both 230v & 12v power.
15amp mains power supplied with 2x20m heavy duty extension leads with circuit breaker protection.
Single lightweight Mastervolt Lithium-Ion battery with large 460-amp hr capacity.
Approximate no maintenance life span of 10 years.
Combi pro charger / inverter unit will recharge the battery at 150 amps in approx 2hrs.
Inverter can supply 3kw of pure sinewave 230v power from the battery – enough to run a full-size jug, coffee machine or hairdryer.
Three large solar panels supply up to 60-amp hr through an mppt solar controller.
House battery charged at 50 amps per hr when the truck is running.
Batteries are maintained with a 6amp charger when mains power is connected.

Generator Petrol

The Italian made Dometic petrol generator has a continuous output of 2.6kw and a quiet 54-59 db rating at 7m.
Powered by a genuine Honda motor supplying a pure sinewave inverter to safely run any sensitive electronic devices.
The Czone monitoring & control system is configured to start & stop the generator as required.
22l tote tank is easily removed to refill and runs the generator at maximum capacity for 16hrs.

Air conditioning skirt mounted

In-skirt Mitsubishi heat pump – 3.5kw cooling & 3.7kw heating.
Operates on mains power or with the on-board generator.
The generator can be operated while travelling to run the aircon and keep the
occupants in the slide-out comfortable and horses in the rear cool.

Tack Locker features

Rubber lining for easy cleaning.
Saddle racks for 3 saddles each.
Removeable shelves in the manger locker.
Double 230v power point on the rear wall also with a 12v usb/c phone charger
Port.
Hot & cold mixer for the rear under skirt tap.

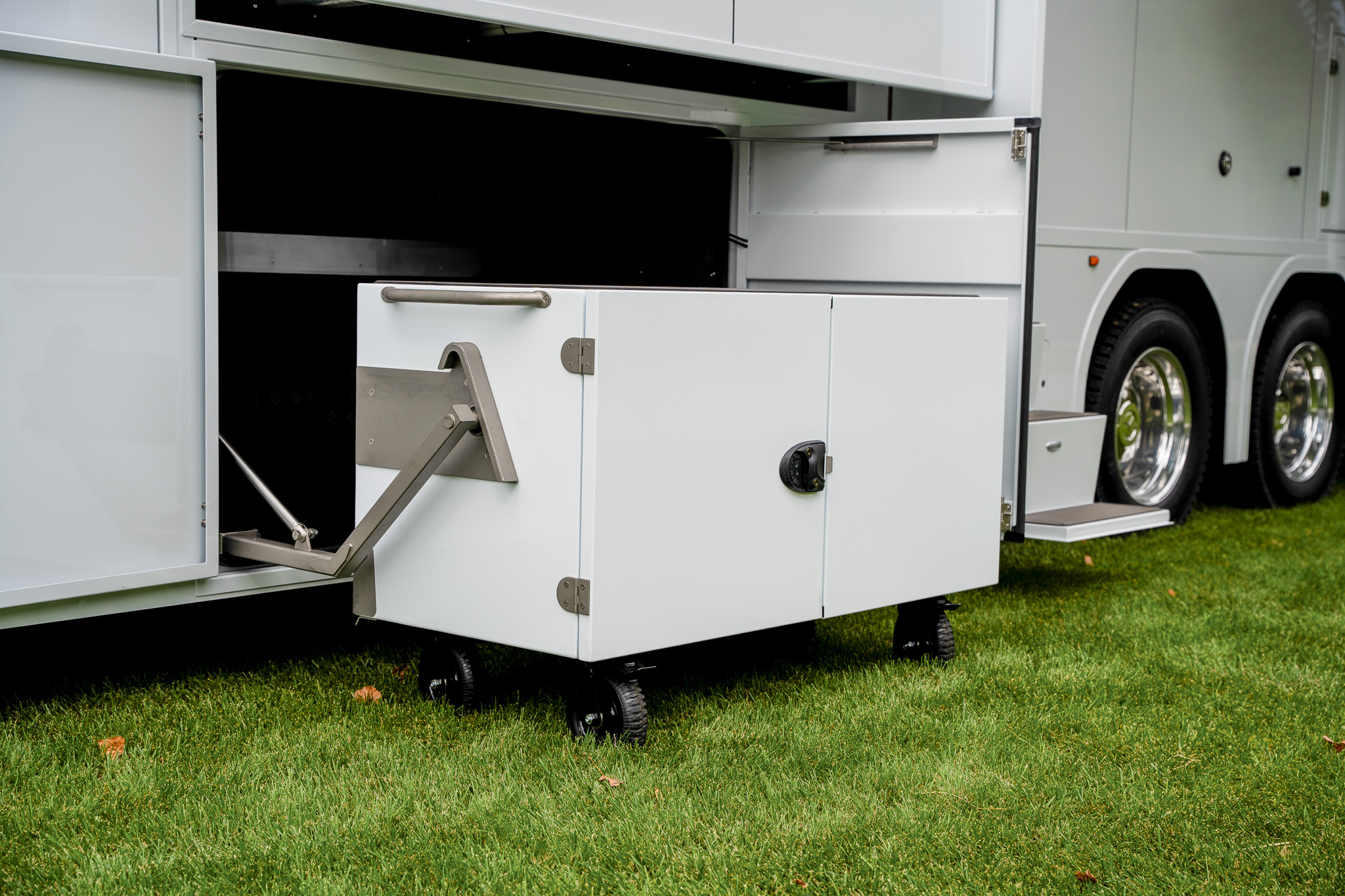

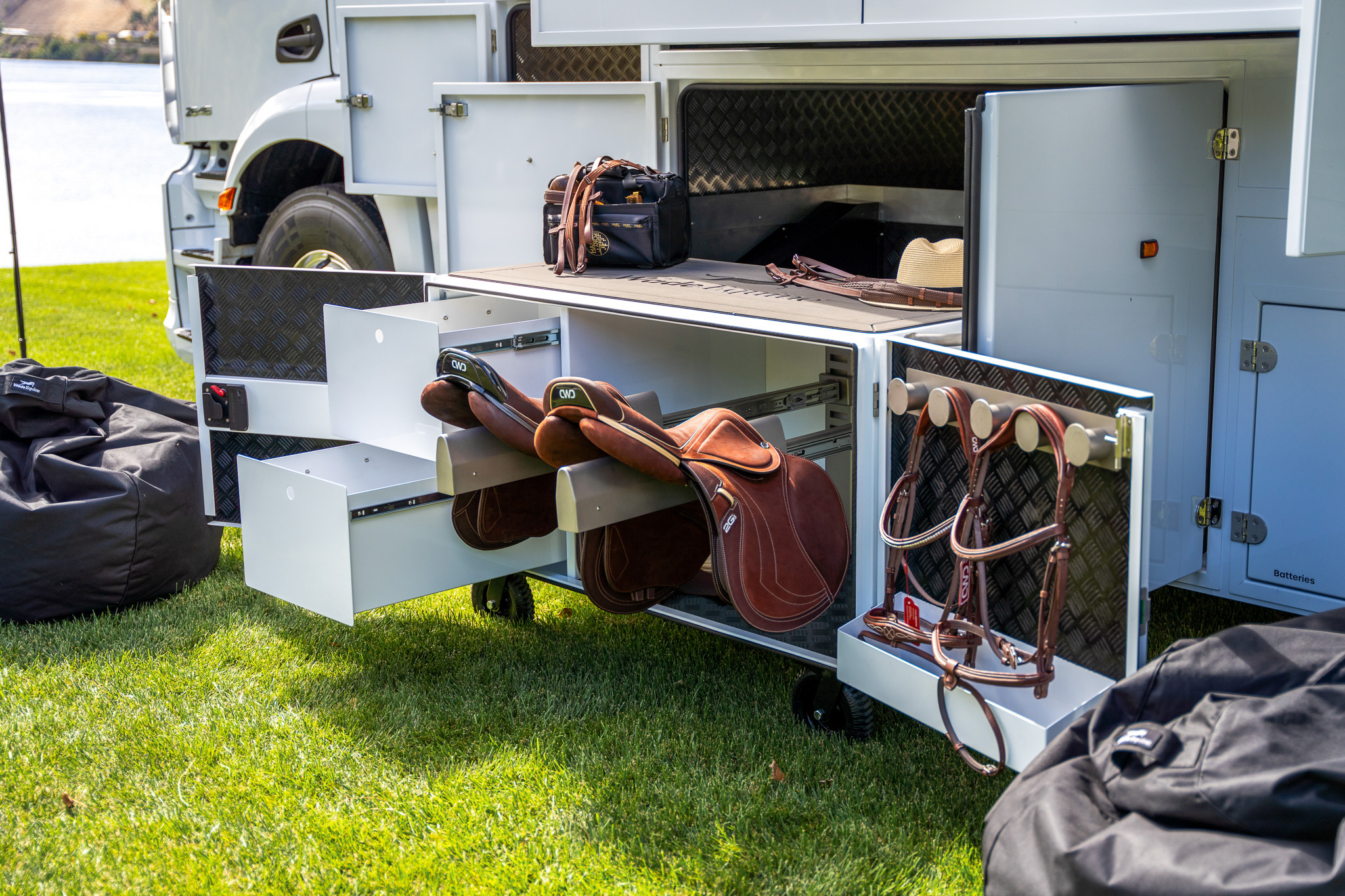

Mobile Tack Box

The mobile tack box swings out of the LH front belly locker with the push
of a button.
Measures 1400l x 650h x 650d – 2 large drawers, 2 single height
adjustable pull-out saddle racks, storage tray and bridle hooks on one of the
doors and plenty of loose storage space.
Large, braked wheels for easy rolling on rough terrain and holding on sloping ground.

Lpg Locker & Installation

Locker holds two 9kg bottles.
Lpg installation is fully tested & certified to AS/NZ 5601.2 standard.
Living area is monitored with a smoke alarm and a lpg detector that will
shut off the gas supply if triggered.

Heating

Thermostatically controlled lpg heating for the living area.
Fresh air recirculation unit with all combustion exhausted to the outside.

Water Heater

Nautilus LPG on demand water heater to supply endless hot water for
long showers, grooming horses etc.
Large 60,000 BTU combustion system to keep up with high demand when required.
Anti-freezing protection.

Tankage

Food grade polyethylene 460l freshwater tanks.
Separate 95l black water sewage tank.

Washing Machine

Locker provision but not fitted.

Awnings

230v powered by the inverter via remote control – 3 meter extension.
Supplied with extra support legs for windy conditions.
Built-in accidental deployment safety feature.

Fridge/Freezer

Large 12v Vitrifrigo 230l model – fridge 170l and freezer 60l.

Cook Top

Thetford 3 burner gas hob.

Oven

Panasonic Steam/Convection/Grill/Microwave Oven.
230v run off the inverter – no mains power required.

Dishwasher

Fisher & Paykel dishdrawer unit.

Stereo

Fusion RA770 head unit.
Quality Sonance speakers – 2 in the living area ceiling and 2 waterproof marine in the horse bay. 10-inch subwoofer in the living and recessed wall speakers on the outside.

Television

32” with an automatic satellite dish mounted on the roof for Vast/Foxtel.

Internet

Roof mounted Starlink unit for fast internet and reliable coverage in remote areas.
